Pogonski sklop TRIAC s mogućnošću prigušivanja za LED rasvjetu 12W/300 mA DC

Aрт. № DDLP22012
Pogonski sklop TRIAC s mogućnošću prigušivanja za LED rasvjetu 12W/300 mA DC

Pogonski sklop TRIAC s mogućnošću prigušivanja za LED rasvjetu 12W/300 mA DC

Art. br. DDLP22012
opis:

The TRIAC driver is designed to control (on, off and dim) LED luminaires with constant current power supply .

  • Works with Leading Edge / Trailing Edge dimmers.
  • The driver is flicker-free and has a power factor PF> 0.9.
  • Suitable for LED luminaires with 300 mA input current and 36 V DC maximum supply voltage (such as the 8W indirect LED downlights or the 12W moveable LED downlight for building-in).
  • Compatible with TRIAC dimming switches for RC load.

Do not covere the driver and make sure there is space around it for good heat desipation!

tehničke karakteristike:
Maksimalna izlazna snaga DC 12W
Ulazni napon AC 220-240V
Frekvencija 50-60Hz
Faktor snage >0.9
Izlazna struja 300mA
Prigušivanje da
Maksimalni izlazni napon DC 36V
Stupanj zaštite IP20
Raspon radne temperature -10 °C ÷ +40 °C
Dimenzije 135/40/20mm
Raspon prigušenja 0-100%
Vrsta upravljanja Fazna kontrola TRIAC
Jamstvo 2 godine
Pulsiranja svjetla Flickerless
opis:

The TRIAC driver is designed to control (on, off and dim) LED luminaires with constant current power supply .

  • Works with Leading Edge / Trailing Edge dimmers.
  • The driver is flicker-free and has a power factor PF> 0.9.
  • Suitable for LED luminaires with 300 mA input current and 36 V DC maximum supply voltage (such as the 8W indirect LED downlights or the 12W moveable LED downlight for building-in).
  • Compatible with TRIAC dimming switches for RC load.

Do not covere the driver and make sure there is space around it for good heat desipation!

Više iz ove kategorije

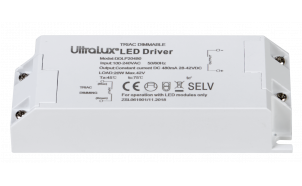

TRIAC pogonski sklop za LED rasvjetu, s mogućnošću prigušivanja,...
Art. br. DDLP20480
  • 20W
  • 28-42V
  • 480mA
  • Fazna kontrola TRIAC
  • da
Pogonski sklop DALI s mogućnošću prigušivanja za LED rasvjetu, 45W...
Art. br. DDLP45D
  • 45W
  • 3-42V
  • 600-1100mA
  • DALI/analogni signal 0-10 V DC/PUSH
  • da

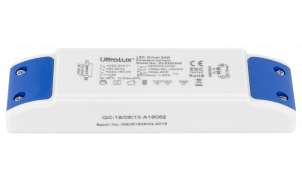

Pogonski sklop za LED rasvjetu, bez mogućnosti prigušivanja, 24W/600mA...
Art. br. DLP220246
  • 24 W
  • 45V
  • 600mA
  • ne

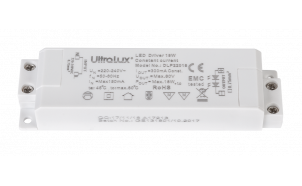

Pogonski sklop za LED rasvjetu, bez mogućnosti prigušivanja, 18W/300mA...
Art. br. DLP22018
  • 18W
  • 60V
  • 300mA
  • ne

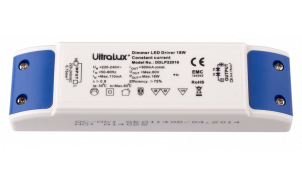

Pogonski sklop TRIAC s mogućnošću prigušivanja za LED rasvjetu 18W/300...
Art. br. DDLP22018
  • 18W
  • 60V
  • 300mA
  • Fazna kontrola TRIAC
  • da

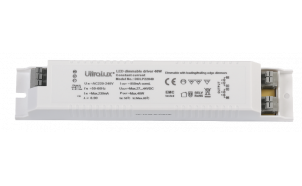

Pogonski sklop TRIAC za LED rasvjetu, 40W/850mA DC
Art. br. DDLP22040
  • 40W
  • 27-44V
  • 850mA
  • Fazna kontrola TRIAC
  • da
Pogonski sklop za LED rasvjetu, bez mogućnosti prigušivanja, 3W/600mA...
Art. br. DLP3600
  • 3W
  • 3-5V
  • 600mA
  • ne

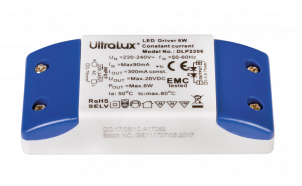

Pogonski sklop za LED rasvjetu, bez mogućnosti prigušivanja, 6W/300...
