LED panel 1200x300 mm, 40W, 5000K, 220V-240V AC

Aрт. № LN1234050
LED panel 1200x300 mm, 40W, 5000K, 220V-240V AC

LED panel 1200x300 mm, 40W, 5000K, 220V-240V AC

Art № LN1234050
description:

UltraLux presents a new LED panel type 1200x300, with 40W power, neutral light 5000K with the following advantages:

  • Very slim profile 9 mm;
  • Replacing the classic luminescent fixtures, helping save twice as much energy;
  • External non-dimmable driver;
  • Driver could be replaced with a dimmable one;
  • Option for ensuring emergency power supply by using emergency module ZAM503, sold separately;
  • Flicker-free light;
  • Colour rendering index Ra≥80;
  • Wide beam angle – 115°;
  • Power factor PF>0.9;
  • Mounting:
    • Ø In drop-in ceiling;

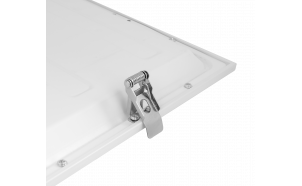

    • Ø In plasterboard ceiling using clips SCLP4;

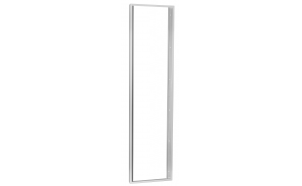

    • Ø Surface mounting using frame FSM1232;

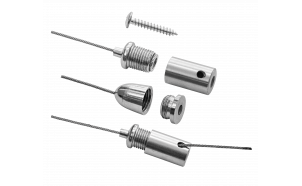

    • Ø Suspended mounting using KELP82 accessories.

Usage:

  • Administrative and public buildings;
  • Hospitals and schools;
  • Offices and stores;
  • Libraries, etc.
specifications:
Power 40W
Voltage AC 220-240V
Frequency 50-60Hz
Power factor >0.9
Dimmable with additional driver
Protection rating IP20
Working temperature range -10 °C ÷ +40 °C
On/Off cycles 15000
Dimensions 1196/296/9mm
Mounting hole 1180/280mm
Lumen Maintenance LM80 30000h
Starting time <0.2sec
Warranty 3 years
Rated luminous flux 4000lm
Flicker Flickerless
Correlated Color Temperature (CCT) 5000K
Color Rendering Index (CRI) ≥80
Beam angle 115⁰
description:

UltraLux presents a new LED panel type 1200x300, with 40W power, neutral light 5000K with the following advantages:

  • Very slim profile 9 mm;
  • Replacing the classic luminescent fixtures, helping save twice as much energy;
  • External non-dimmable driver;
  • Driver could be replaced with a dimmable one;
  • Option for ensuring emergency power supply by using emergency module ZAM503, sold separately;
  • Flicker-free light;
  • Colour rendering index Ra≥80;
  • Wide beam angle – 115°;
  • Power factor PF>0.9;
  • Mounting:
    • Ø In drop-in ceiling;
    • Ø In plasterboard ceiling using clips SCLP4;
    • Ø Surface mounting using frame FSM1232;
    • Ø Suspended mounting using KELP82 accessories.

Usage:

  • Administrative and public buildings;
  • Hospitals and schools;
  • Offices and stores;
  • Libraries, etc.
