Microwave sensors have higher sensitivity and greater detection range compared to PIR sensors. The signal of the microwave sensor can pass freely through wood, glass and thinner walls.

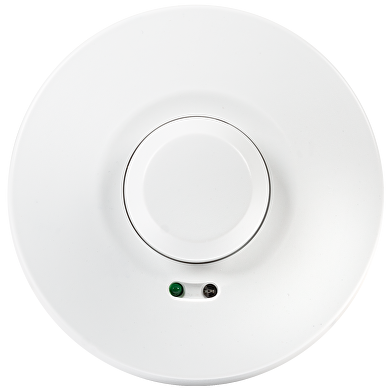

Ultralux® sensor MSOM20 is designed for wall mounting. It can work with incandescent lamps and LED lighting. Its ingress protection rate is IP20.
Function:
| Voltage AC | 220-240V |
| Frequency | 50-60Hz |
| Maximum load (active/reactive) | 1200/300W |
| Sensor working frequency | 5.8GHz |
| Output signal power | <0,2mW |
| Protection rating | IP20 |
| Working temperature range | -20 ⁰C ÷ +40 ⁰C |
| Time delay | 10 sec. - 12min |
| Detection distance | 1-9m |
| Installation height | 1,5-3,5m |
| Ambient light | <3-2000lx |
| Detection range | 360° |
| Self consumption | 0.9W |
| Warranty | 2 years |
| Detection moving speed | 0.6-1.5m/s |
| Working humidity | <93%RH |
